Kedron Solar 100 Watt Lightweight Universal Folding Solar Panel Kit

Kedron Solar SKU: BFX-H-2X55W
Kedron Solar 100 Watt Lightweight Folding Solar Panel Kit Canada
Kedron Solar 100 Watt Lightweight Universal Folding Solar Panel Kit
Kedron Solar 100 Watt Lightweight Universal Folding Solar Panel Kit
Kedron Solar 100 Watt Lightweight Universal Folding Solar Panel Kit
Kedron Solar 100 Watt Lightweight Universal Folding Solar Panel Kit
Kedron Solar 100 Watt Lightweight Universal Folding Solar Panel Kit
Kedron Solar 100 Watt Lightweight Universal Folding Solar Panel Kit
Kedron Solar 100 Watt Lightweight Universal Folding Solar Panel Kit

Kedron Solar 100 Watt Lightweight Universal Folding Solar Panel Kit

Kedron Solar SKU: BFX-H-2X55W
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way

Kedron Solar Logo

Our exclusive Kedron Solar® 100 Watt Lightweight Folding Solar Kit is designed specifically for charging portable solar generators such as the EcoFlow, Bluetti, Jackery, Energizer ARC, Goal Zero - and more!

Connect up to 4 x 100 Watt Kit panels together using our Y-Branch Connectors! *Make sure to check with your particular solar generator DC charge input rating before connecting.

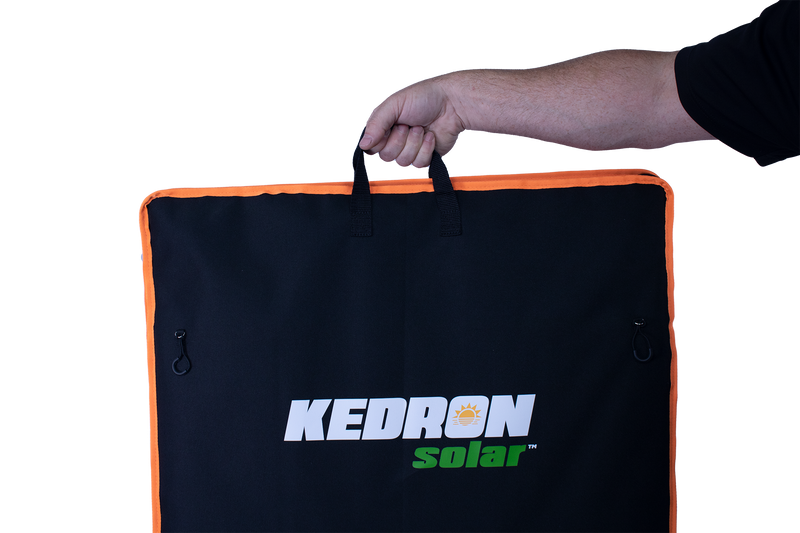

Constructed with portability, ease of transportation, and versatility in mind, this ETFE coated solar panel kit is UV protected and comes complete with a carrying case to accommodate the various charge cords and adapters. The entire kit weighs less than 12lbs, and the solar panel itself is less than 8lbs and has built-in handles making repositioning easy.

Included charging cords

  • Main Cable: 10FT Anderson to MC4
  • Accessory Cables:
    • 1.5FT MC4 to Anderson
    • 1.5FT MC4 to SAE
    • 1.5FT MC4 to M8

Operation

Unfold the solar panel, and place in direct sunlight. The 10FT Anderson to MC4 cable then connects to the solar panel via the included Anderson socket. You can't mix this up because there's only one way this can be connected :) Choose the adapter that matches your solar generator DC charging input, then plug into the MC4 end of the main cable to create a waterproof connection. Some solar generators such as the Energizer ARC series use a smaller plug adapter, but come with their own MC4 adapter which are able to plug into the Main cable directly.

Note the 10FT cable included must be used to ensure correct polarity.

Specifications

  • Maximum power (Pmax) = 100W
  • Open-circuit voltage (Voc) = 23V
  • Voltage at Pmax (Vmp) = 19.8V
  • Short-circuit current (Isc) = 6.01A
  • Current at Pmax(Imp) = 5.56A
  • Cells Efficiency(%) = 22.62%
  • Maximum System Voltage = 100VDC
  • Output power tolerance = ±5%
  • Operating Temperature = -20~70
  • Solar cell type = Mono
  • Unfolded size = 1246*568*20mm
  • Folded size = 568*623*36mm
  • Weight = 2.1KG

The Kedron Solar 100 Watt Lightweight Folding Kit come standard with a 1-year warranty covering manufacturing defects, and 5-year performance guarantee on the solar panels.
