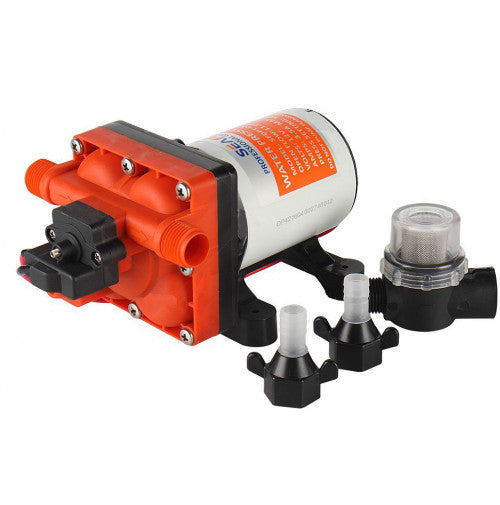

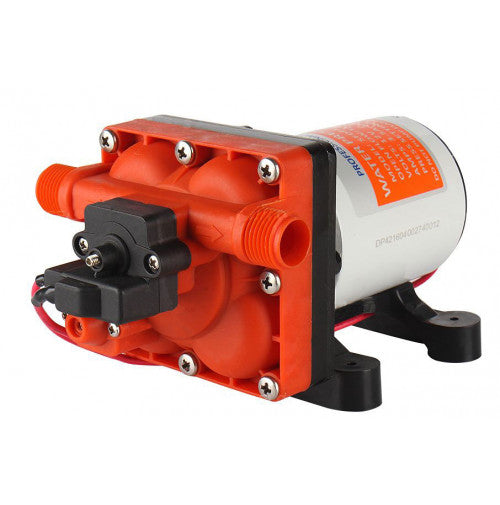

Diaphragm Pump 42 Series 24V
Meet our newest addition to our diaphragm pumps: the 42 series.
It retains the raw power and pressure of its predecessors, but can also adapt to situations where huge flow is not needed.
Compact but capable, it is a great fit for tight spaces.
It also may be configured with different inlet types, each with their own unique fittings, to be sure that it fits any application you can find.
Pump: 4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type: Pressure switch & by pass control
Max Recommended Temperature: 60° C（140° F)
Priming Capabilities: 6 feet (1.8 m) suction lift
Re-start Pressure: Shut-off pressure 55 PSI : 41 PSI ±5 PSI (±0.3 bar)
Inlet/Outlet Ports: 1/2" -14 MNPT
Weight: 4 lbs (1.9 kg)
Leads: 16 AWG, 9.4" (24cm) long with 2-Pin connector/Leads
Duty Cycle: Intermittent
Max. Amp Draw: 7.5 A
Fuse 10 A
