EcoFlow 5kWh Power Kits

EcoFlow SKU:

EcoFlow 5kWh Power Kits

EcoFlow SKU:
Power Kit Options
  • Secure payments
  • In stock, ready to ship
  • In stock now





EcoFlow Power Kits are the world's first integrated, plug-and-play power solutions designed especially for tiny homes and RVs.

Power for Vans/RVs/Trailers & Off-Grid Builds!

Find the battery stack that fits your power needs

Powers All Your Essential Appliances

4 Charging Methods

You might be on the road, but there are plenty of ways to charge, and fast. We’ve designed a new range of rigid and flexible solar panels giving your van a solar input of up to 4800W*. Use your alternator to recharge with 1000W. Spending the night on a campsite? Then take advantage of shore power for an extra 3000W. Caught short? Rely on our Smart Generator for emergency backup.



Simple Assembly

The Ecoflow modular system is plug-and-play so you can quickly customize your van power whenever you want. Simply stack a battery to increase capacity, or plug in a solar panel for faster charging.


Compare for yourself





Compact & Integrated Design

Unlike other RV power solutions, Power Kits combine five components into one Power Hub that deals with all your power needs, saving you space, money, and set-up hassle. Our 2 and 5kWh batteries securely stack in threes, giving you an expandable capacity of up to 15kWh.

Space-Saving Solutions

To save your valuable space, we shrank down the traditional power kit, integrating components, using thinner wires, and creating a unique stackable battery. Conveniently conceal the Power Hub, batteries and other accessories so they’re out of sight, under seats or in a closet.



48V, a safer, smaller power solution.

Power Kits offer you a safe, 48V power solution for your van. A 48V system produces the same amount of power, but unlike 12Vs, only a quarter of the electric current passes through the wires, producing significantly less heat and power loss.

Smart Controls

Keep an eye on your energy at home and on the go with a whole host of setting options and real-time data tracking accessible from the app and Power Kit Console.

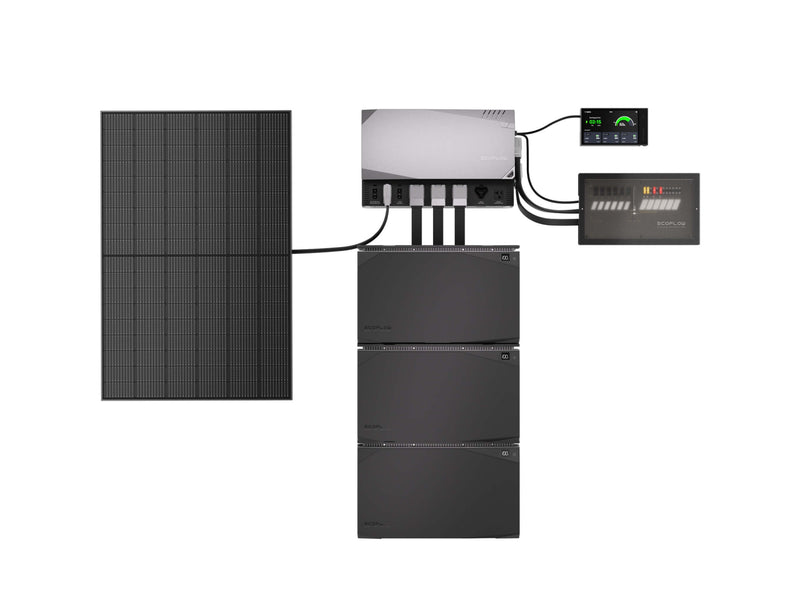

What's included in the Power Kits

5kWh Power Kits create a comfortable living environment for your RV or off-grid life and are expandable to 15kWh with an extra 2 batteries.

Easy Set Up: The integrated EcoFlow Power Hub has a simple plug-and-play design, allowing you to expand and customize your kit faster than any other power solution on the market.

Save Space: EcoFlow Power Hub combines two MPPT solar charge controllers, one battery charger with MPPT, one DC-DC step-down converter, and an inverter-charger. With fewer modules and thinner wires, this 48V system saves you space and installation hassle.

Charge Your Way: EcoFlow Power Kits support multiple charging methods. Get plenty of solar power, use your alternator, plug in shore power, or even use an EcoFlow Smart Generator for emergency charging

4 Charging Methods: You might be on the road, but there are plenty of ways to charge, and fast. We’ve designed a new range of rigid and flexible solar panels giving your van a solar input of up to 4800W*. Use your alternator to recharge with 1000W. Spending the night on a campsite? Then take advantage of shore power for an extra 3000W. Caught short? Rely on our Smart Generator for emergency backup.


Get Set Power Kit Includes:

1x Power Hub

3x 5kWh LFP Battery

1x Cable Pack

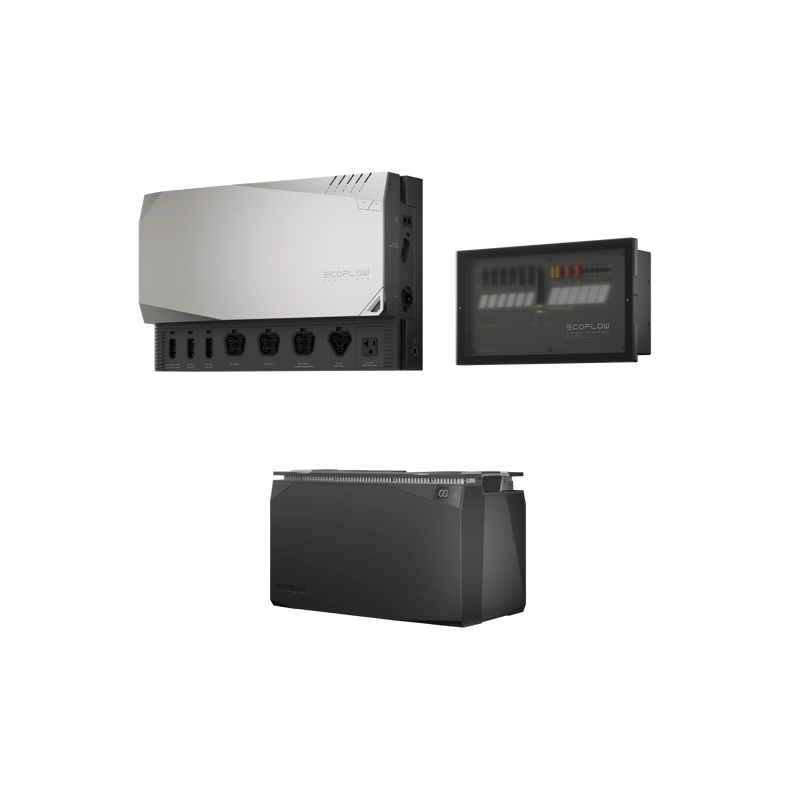

Prepared Power Kit Includes:

1x Power Hub

1x 5kWh LFP Battery

1x Cable Pack

1x AC / DC Smart Distribution Panel

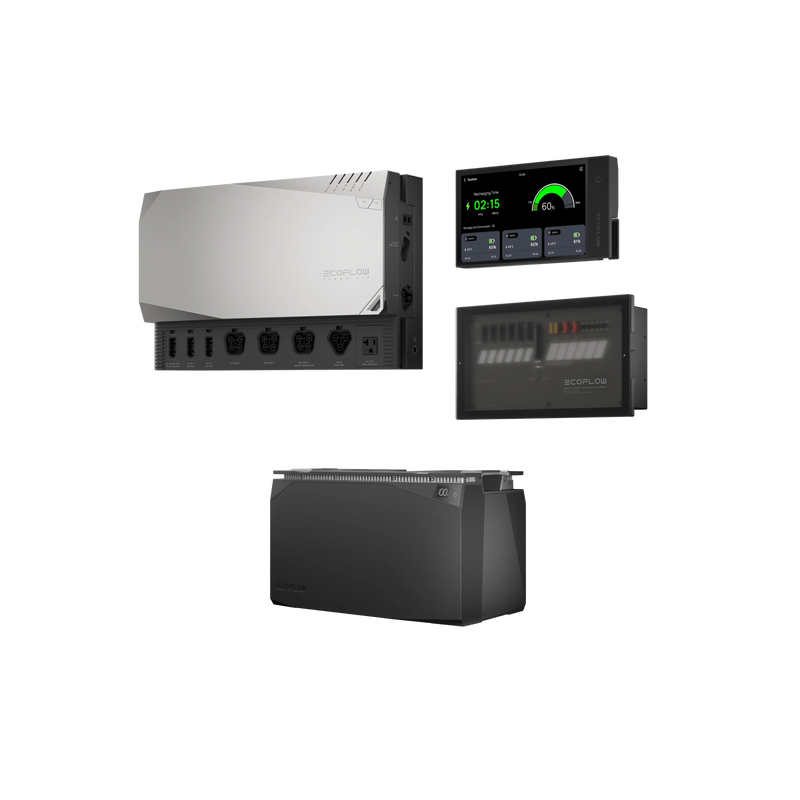

Independence Power Kit Includes:

1x Power Hub

1x 5kWh LFP Battery

1x Cable Pack

1x AC / DC Smart Distribution Panel

1x Power Kit Console

1x Battery Mounting Strap

Independence Power Plus+ Kit Includes:

1x Power Hub

1x 5kWh LFP Battery

1x Cable Pack

1x AC / DC Smart Distribution Panel

1x Power Kit Console

1x Battery Mounting Strap

1 x Smart Generator

Specifications:

Power Hub ?NA)

Net Weight - 31lbs

Dimensions - 11.8*18.9*5.5in?Height x Width x Depth?

Testing and Certification - CE, UL, FCC

WI-FI - Supported

Bluetooth - Supported

AC Main Output/frequency - Pure Sine Wave - 3600W?Surge 6000W?120V

DC Main Output - 13.6V/70A 1000W Max; 26.4V/60A?1500W Max

AC Main Input Voltage/frequency - 100-120V~ , 50Hz/60Hz

Solar Charging Input - 15-150V 30A?1000W Max

Alternator Charging Input - 13V 60A 1000W Max

Best Operating Temperature - 68°F to 86°F (20? to 30?)

2kWh LFP Battery | 5kWh LFP Battery

Capacity - 2048Wh (51.2V, 40Ah) | 5120Wh (51.2V, 100Ah)

Cell Chemistry - Lithium Iron Phosphate

Cycle Life - 3000 Cycles to 80% capacity | ~3500 Cycles to 80% capacity

Operating Temperature - -4°F to 140°F (-20? to 60?)

Dimensions - 11.2in X 13.7in X 7.8in | 11.8in X 19.7in X 10.2in

Net Weight - 37lbs | 90lbs

AC/DC Smart Distribution Panel (NA)

AC Main Input - 30A Max, 120V, 3600W

DC Main Input - 70A Max

AC Output - 6 AC Positions, 20A Max each

DC Output - 12 Fused DC Positions

Dimensions - 7.1in x 14in X 3.5in (Height x Width x Depth)

Net Weight - 5.7lbs

Power Kit Console

Touch Screen (Diagonal) - 7 Inch

Dimensions - 4.5in X 8.1in X 0.9in (Height x Width x Depth)

Net Weight - 1lbs
